产品简介：

ECM99-IE型电脑中频治疗仪由主机(含显示器)、台车、电极和输出线组成。该机采用PC微机控制，图形化友好界面，人机对话操作方式。具有8个双向波输出通道和2个配合药物导入的离子导入通道，可以2-8路任意同步（处方、幅度）或异步工作，可同时对8个病人或8个部位进行治疗。本仪器储存130个处方，30个多步程序中频电流疗法、20个音频电流疗法、20个正弦调制中频电流疗法、30个脉冲调制中频电流疗法、30个干扰电流疗法。本机可以在治疗时建立病案，在建立病案的方式下治疗，治疗的病案可以打印输出。本机还具有自行编制治疗处方功能，容量不限，为临床和科研提供广阔的天地。

产品优势：

1. 原始处方：存储了公司理疗专家顾问、发明人林士德的原始电子处方。

2. 安全性更高：通过了11项电磁兼容测试。

3. 同时治疗人数或部位多：同时治疗8个病人或8个部位。

4. 处方数多：130个储存处方。

5. 具有自编处方功能，方便临床研究、试验。

6. 具有病案管理、打印功能。

7. 界面友好，具有输出波形显示等功能。

   基本参数：

1. 输出通道：双向波8路，离子导入2路。

2. 输入功率：380VA。

3. 处方类型：多步程序、音频电流、正弦调制、脉冲调制、静态和动态干扰电流。

4. 外形尺寸（长×宽×高）：580mm×600mm×1180mm。

   重量：40kg。

Product Profile:

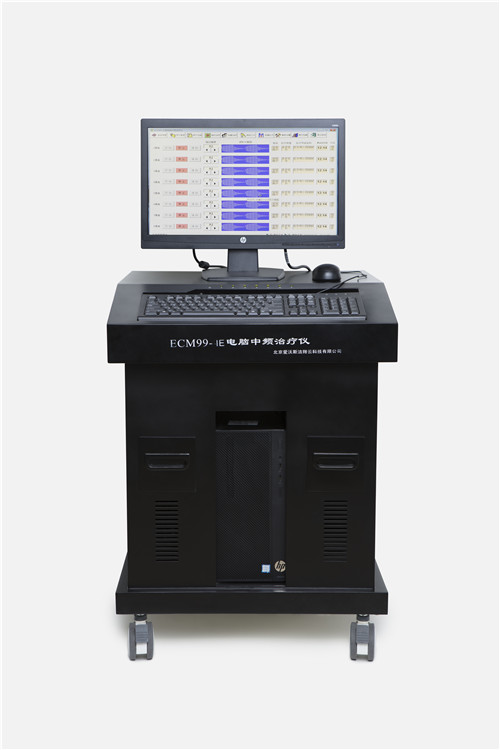

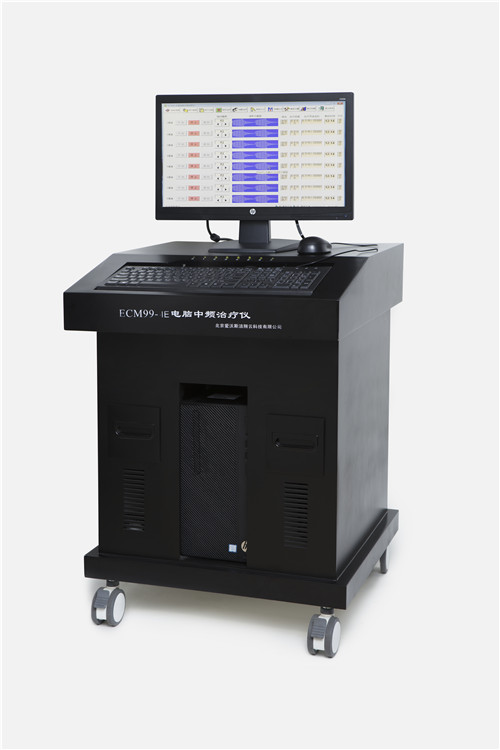

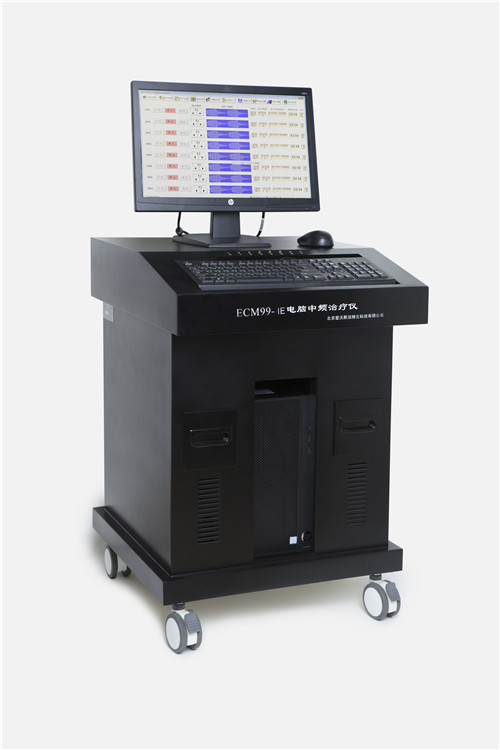

ECM99-IE computer IF therapeutic instrument is composed of host (including display), trolley, electrode and output line. The machine is controlled by PC, with friendly graphical interface and man-machine dialogue. It has 8 bidirectional wave output channels and 2 ion introduction channels cooperating with drug introduction. It can work synchronously (prescription, amplitude) or asynchronously in 2-8 channels, and can treat 8 patients or 8 sites simultaneously. The instrument stores 130 prescriptions, 30 multi-step procedures of frequency current therapy, 20 audio current therapy, 20 sinusoidal modulation of frequency current therapy, 30 pulse modulation of frequency current therapy, 30 interference current therapy. The machine can set up medical records during treatment, and treat them in the way of establishing medical records. The medical records of treatment can be printed out. The machine also has the function of self-compiling treatment prescription, and has unlimited capacity, which provides a wide field for clinical and scientific research.

Product advantages:

1. Original prescription: Store the original electronic prescription of Lindstein, the company's physiotherapy expert consultant and inventor.

2. Higher security: passed 11 EMC tests.

3. Number or location of patients treated at the same time: 8 patients or 8 sites treated at the same time.

4. More prescriptions: 130 stored prescriptions.

5. It has the function of self-compiling prescription and is convenient for clinical research and experiment.

6. It has the functions of medical record management and printing.

7. Friendly interface, with output waveform display and other functions.

Applicable disease (prescription):

Analgesic effects: periarthritis of shoulder, epicondylitis of humerus, cervical spondylosis, lumbar disc herniation, degenerative osteoarthritis, rheumatoid arthritis, rheumatoid arthritis, contusion, myofibritis, muscle strain, stenosing tenosynovitis, pelvic inflammatory disease, adnexitis, chronic pharyngolaryngitis, breast hyperplasia, sciatica, peripheral nerve injury, articular contracture, chronic anterior column Adenosis.

Improve local blood circulation and promote the dissipation of inflammation: periarthritis of shoulder, epicondylitis of humerus, cervical spondylosis, lumbar disc herniation, degenerative osteoarthritis, rheumatoid arthritis, rheumatoid arthritis, contusion, myofibritis, muscle strain, stenosing tenosynovitis, pelvic inflammation, appendix inflammation, chronic pharyngitis, mammary gland hyperplasia, sciatica, peripheral nerve injury Injury, joint contracture, chronic prostatitis, myositis, delayed union of fracture, Reynolds disease.

Softening scar release adhesion: scar, scar contracture, postoperative adhesion, intestinal adhesion, post-inflammation sclerosis, post-injection sclerosis, hematoma mechanization, stenosing tenosynovitis.

Excited nerve and muscle: Muscle dysfunction after nerve or muscle injury, disused muscle atrophy, postoperative intestinal paralysis, urinary retention, constipation, vocal cord paralysis, gastroptosis.

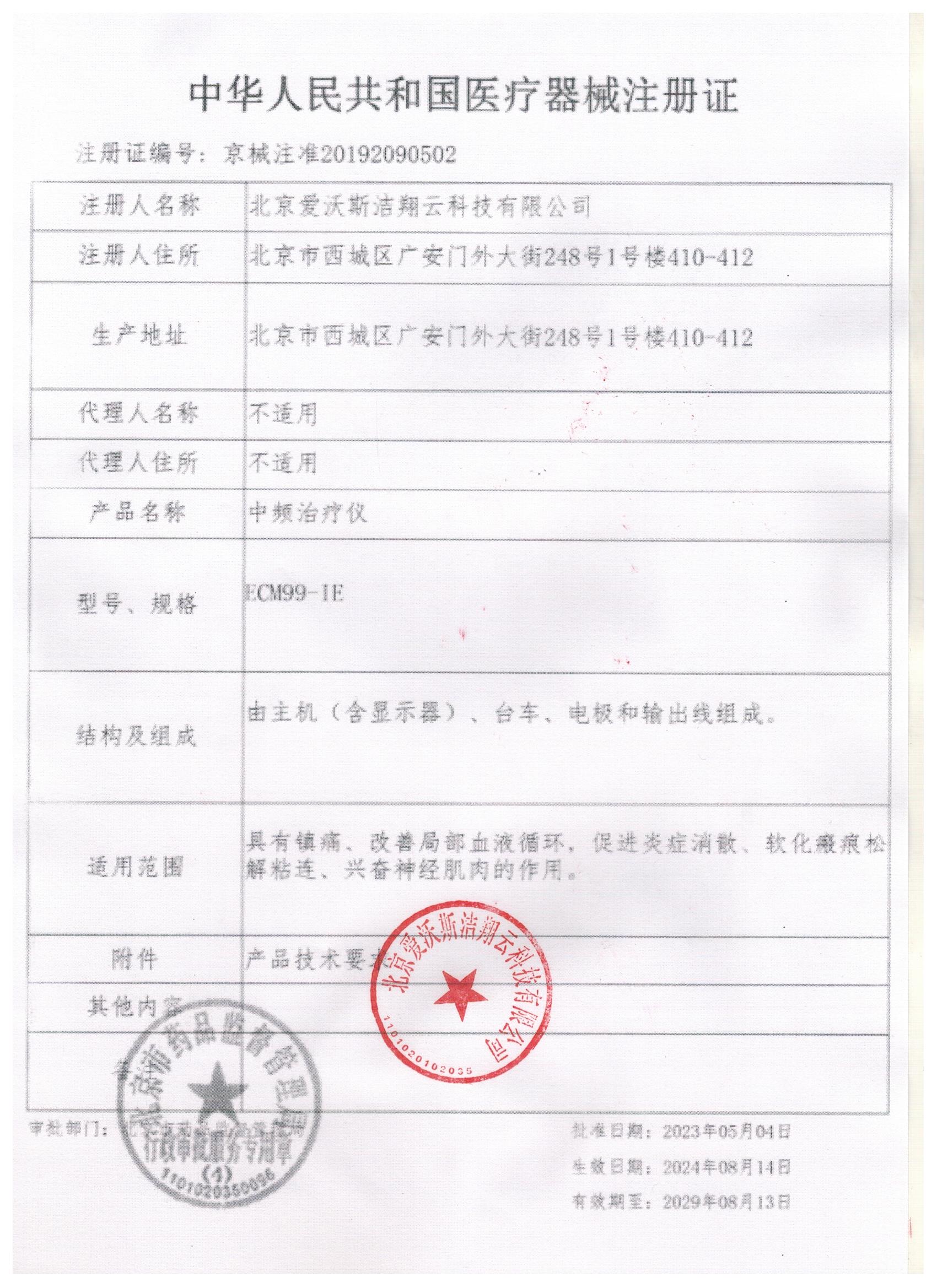

Product Certificate: Registration Certificate Number: Beijing Food and Drug Supervision Instrument (Quasi) No. 226235, 2014.

Basic parameters:

1. Output channel: 8 channels of bidirectional wave and 2 channels of iontophoresis.

2. Input power: 380VA.

3. Prescription types: multi-step program, audio current, sinusoidal modulation, pulse modulation, static and dynamic interference current.

4. Shape size (length * width * height): 580 mm * 600 mm * 1180 mm.

Weight: 40kg.
